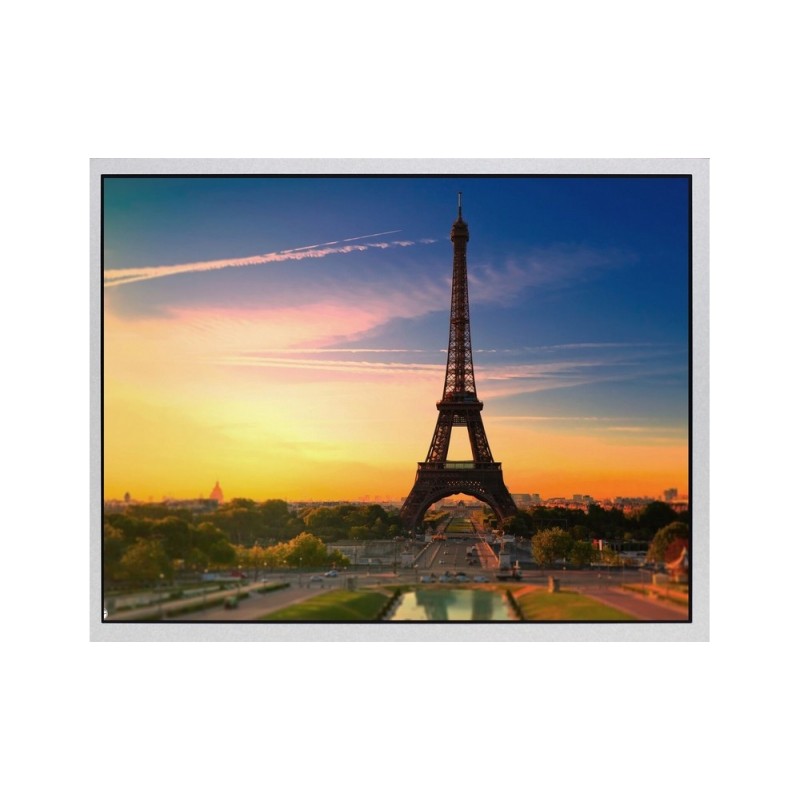

7" TFT Display, 550 d/m2 with CTP Option

Data sheet

Resolution

800 (RGB) x 480 Resolution

Active Area (W x H mm)

152.40 x 91.44 mm

Overall Dia. (W x H x D mm)

165.00 x 104.44 x 11.61 mm

Backlight Brightness

550 cd/m2

Backlight Lifetime

70K Hours

Backlight Types

LED

Backlight Colours

White

Interface Mode

RGB 18 Bit

Diagonal

5.70 inch

LCD Type

TFT

Viewing Direction

6 O'clock

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Polarizer Modes

Transmissive

Display Controller/Driver IC

HIMAX HX8262-A / HIMAX HX8678-A
