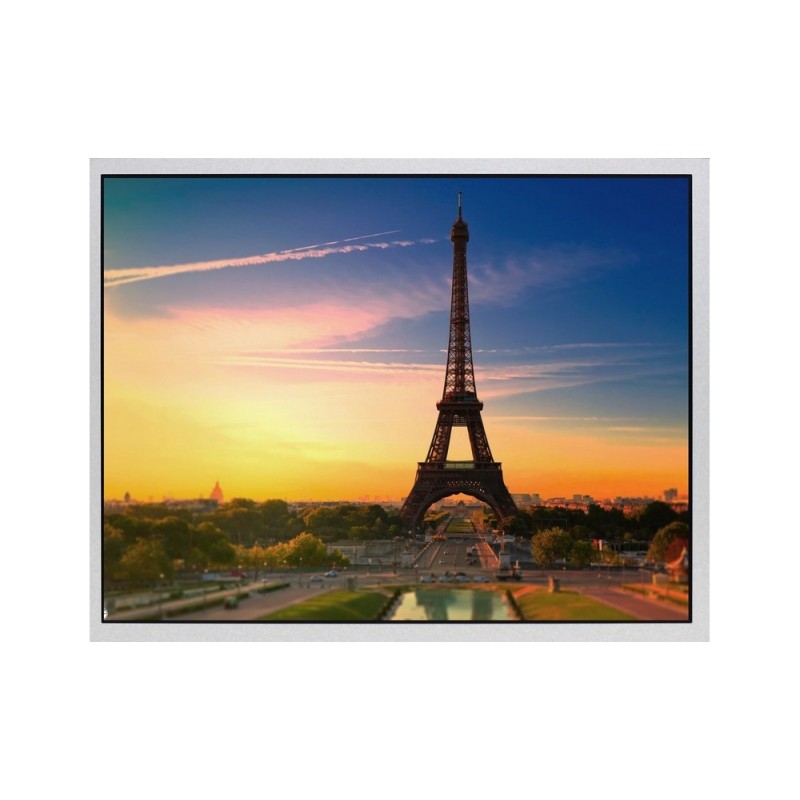

5.7" TFT Display, 380 d/m2 with CTP Option

Data sheet

Resolution

640 x 480 Dots

Active Area (W x H mm)

115.20 x 86.40 mm

Overall Dia. (W x H x D mm)

147.60 x 100.00 x 7.56 mm

Backlight Brightness

380 cd/m2

Backlight Lifetime

30K Hours

Backlight Types

LED

Backlight Colours

White

Interface Mode

RGB 24 Bit

Diagonal

5.70 inch

LCD Type

TFT

Viewing Direction

12 O'clock

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Polarizer Modes

Transmissive

Display Controller/Driver IC

HIMAX HX8250 / HIMAX8678
