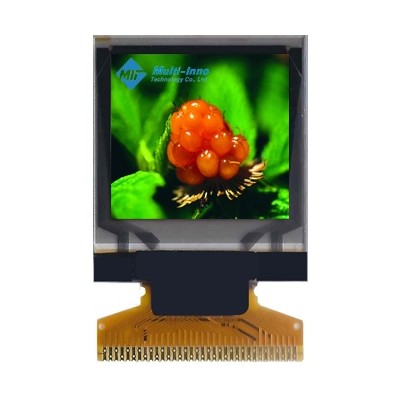

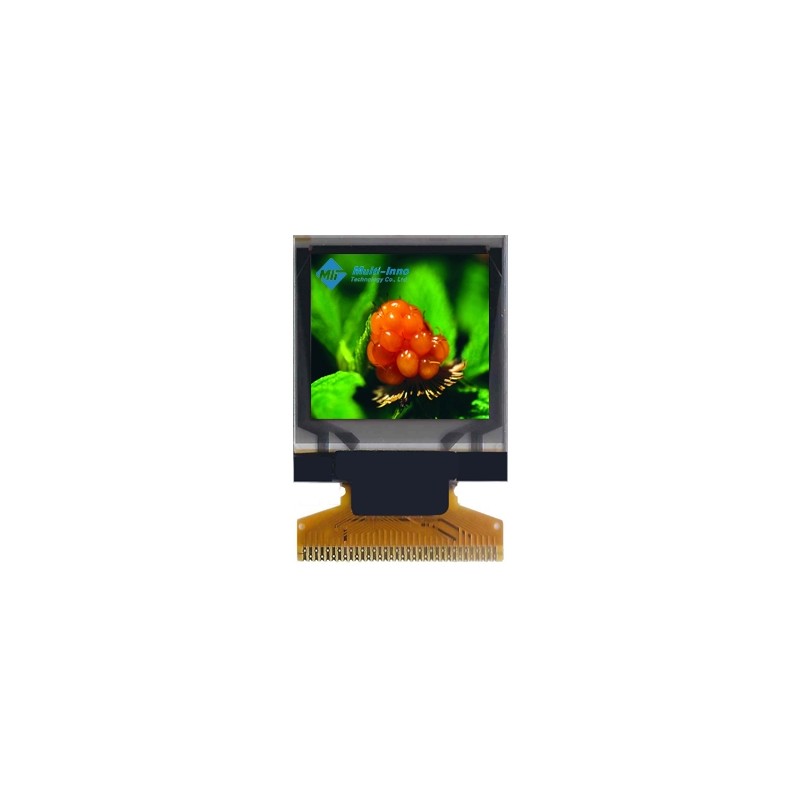

1.1" Full Colour OLED Display

Data sheet

Resolution

96 x 96 Pixels

Active Area (W x H mm)

19.852 x 19.852

Overall Dia. (W x H x D mm)

25.90 x 30.10 x 1.30

Interface Mode

8 Bit Parallel, SPI

Diagonal

1.1

LCD Type

Passive Matrix OLED

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Dot Pitch

0.207 x 0.207

Display Controller/Driver IC

SEPS114A
