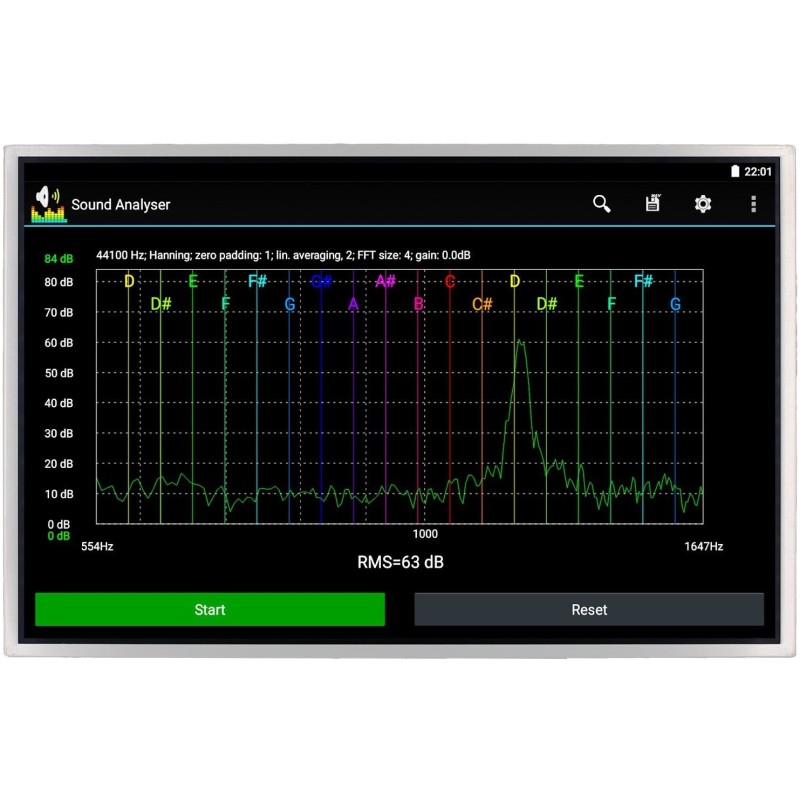

12.1" IPS Sunlight Readable TFT Display, 650 cd/m2, with LVDS Interface

Data sheet

Resolution

1024 (RGB) x 768 Resolution

Active Area (W x H mm)

245.76 x 184.32

Overall Dia. (W x H x D mm)

260.50 x 204.00 x 8.60

Backlight Brightness

650 cd/m2

Backlight Lifetime

30K Hours

Backlight Types

LED

Backlight Colours

White

Interface Mode

LVDS

Diagonal

12.1 inch

LCD Type

IPS

Viewing Direction

70/70/80/80

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Polarizer Modes

Transmissive
