PanelPilotACE 4.3 inch Programmable Display Development Kit with Meter

 Quickly prototype and test projects

    Includes 4.3 inch PanelPilotACE display

    Prototyping area for testing circuitry

    Powered from USB

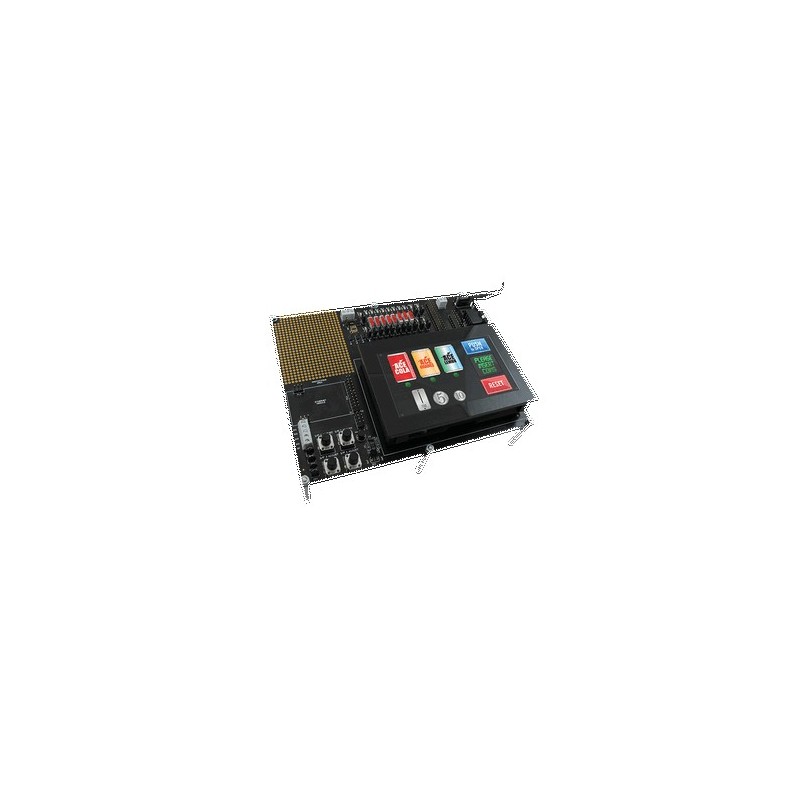

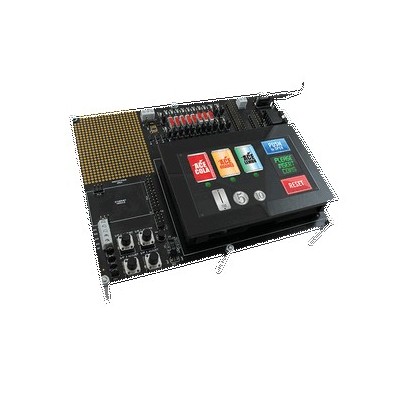

SGD 43-A-DK+ is a development kit for the SGD 43-A PanelPilotACE compatible display. The development board itself provides switches, dials, LEDs and screw terminal connections to quickly connect to and test all of the input/output functionality of the SGD 43-A.

The kit includes a 4.3 inch PanelPilotACE display, a USB cable and a development board which provides connections to all of the input/output functionality of the display. This includes LEDs and switches for digital I/O, four potentiometers to generate analogue inputs, variable brightness LEDs for PWM outputs and a prototyping area for testing circuitry. Connections are also available for the displays RS232, SPI and I2C functionality which will be made available for use in a future software update
