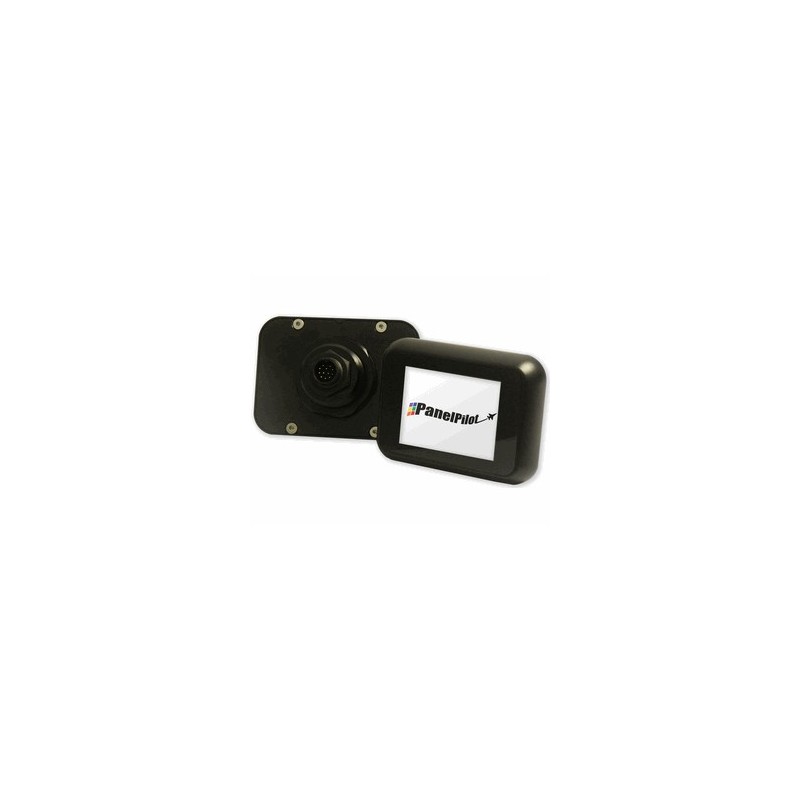

PanelPilot 2.4 inch Waterproof Programmable Display

    2.4 inch colour TFT screen

    IP67 and NEMA 6 rated

    Rugged and scratch resistant Corning® Gorilla® Glass window

    IP67 12 way connector supplied

    0 to 40V d.c. measurement range

The SGD 24-M-IP is a waterproof PanelPilot Compatible IP67 graphics display with a 320 x 240 pixel (QVGA) colour display and USB programming interface.

Using the PanelPilot software (available for Windows XP, 2000, Vista and Windows 7), users are able to choose from an ever-increasing number of configurations which can then be customised to their needs. The additional voltmeter types and other functions are available through www.PanelPilot.com.

Colours, text labels, splash screen and input voltage scaling can all be customised by the user through the software and then uploaded to the SGD 24-M-IP through the USB connection. When setup is complete, the settings can be saved and then uploaded to the meter using the supplied USB cable. Panel or enclosure installation of the finished module is simple, using the 32mm nut and the IP67 connector supplied with the unit.

Note that the SGD 24-M-IP does not feature touch-screen functionality and therefore is not compatible with configurations requiring touch-input.
