Display Format : 1024 (RGB) x 600
Contrast Ratio : 16 : 9
Screen Size : 7.0 inch
Overall Dia.(W x H x D mm) : 165.75 x 105.39 x 2.70
|
Active Area (W x H mm) : 153.60 x 90.00
Driver Board Size W x H x D) : 102.00 x 70.00 x 15.78
|
|
Backlight Brightness : 230 cd/m2
Viewing Angle : 60/65/65/65
|
| Working Voltage : 9 - 18V |
Working Current : DC 430mA +/- 30mA
|
| Power Consumption : 5.16W Typ. |
Operating Temperature : -10 to +60 deg. C
|
| Storage Temperature : -20 to +70 deg.C |

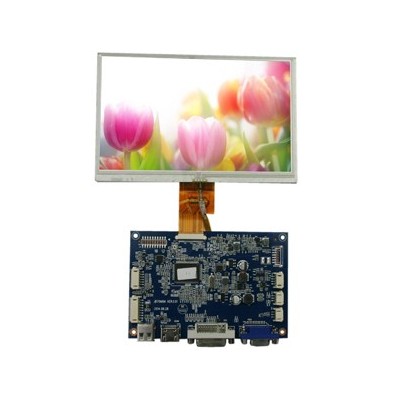

Part Number: LTKJD70M06-HE070NA
Download Specification
JD70M06-HE070NA
