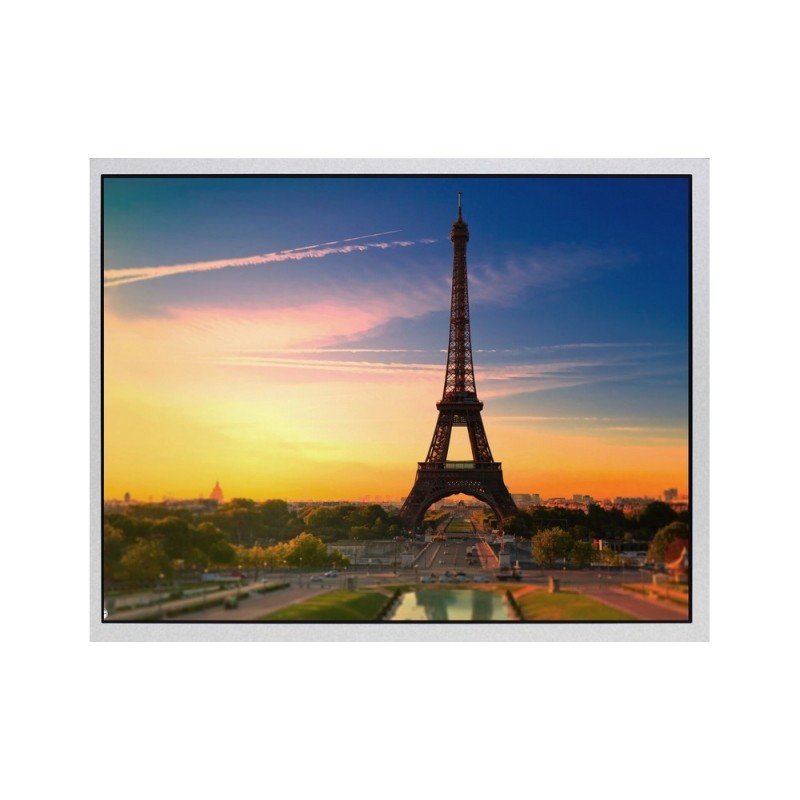

8.0" Sunlight Readable TFT Display, 750 cd/m2 with LVDS Interface

Data sheet

Resolution

800 (RGB) x 480 Resolution

Active Area (W x H mm)

162.00 x 121.50

Overall Dia. (W x H x D mm)

183.00 x 141.00 x 5.80

Backlight Brightness

750 cd/m2

Backlight Lifetime

20K Hours

Backlight Types

LED

Backlight Colours

White

Interface Mode

LVDS

Diagonal

8.00 inch

LCD Type

a-Si

Viewing Direction

6 O'clock

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Polarizer Modes

Transmissive
