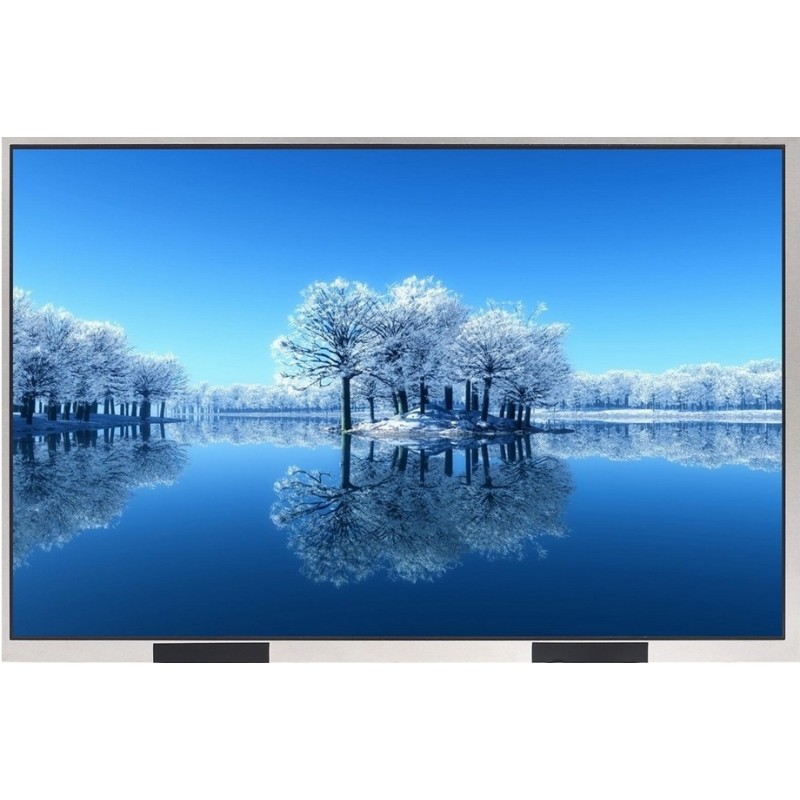

10.1" Standard BOE Display, with LVDS Interface

Data sheet

Resolution

1280 (RGB) x 800 Resolution

Active Area (W x H mm)

216.96 x 135.60

Overall Dia. (W x H x D mm)

233.20 x 152.90 x 6.70

Backlight Brightness

400 cd/m2

Backlight Lifetime

30K Hours

Backlight Types

LED

Backlight Colours

White

Interface Mode

LVDS

Diagonal

10.1 inch

LCD Type

IPS

Viewing Direction

85/85/85/85

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Polarizer Modes

Transmissive
