Open Frame 10.1 " IPS Display with HDMI Interface
Open Frame 10.1 " IPS Display with HDMI Interface. 1250cd/m2 luminance with Projective Capacitive Touch

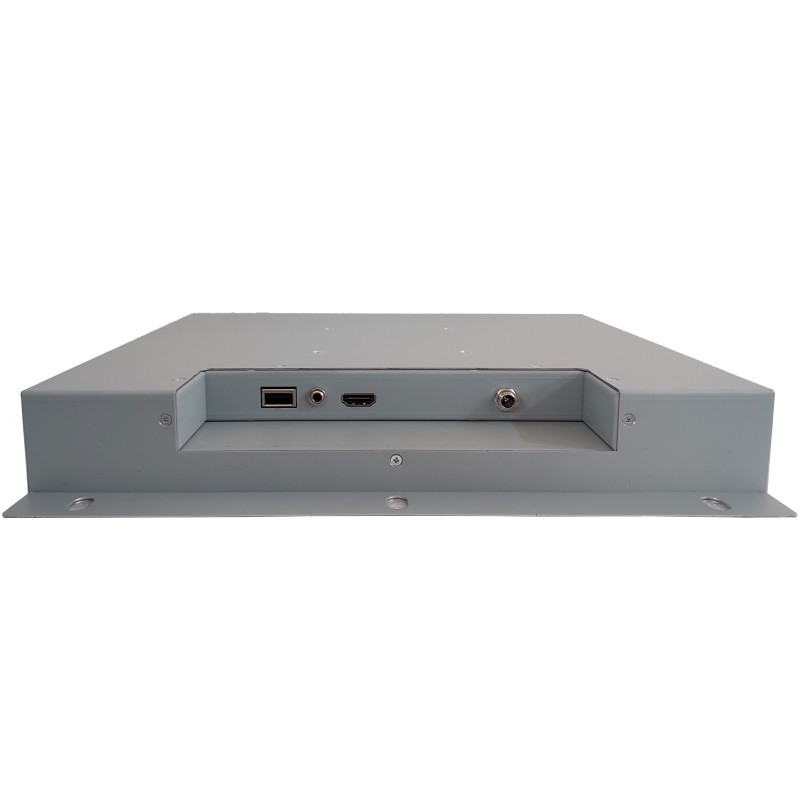

OF-101ZDEBCXD1F1-S is a 10.1 (16:10) inch diagonally measured active display
with metal frame, high resolution of 1280x800 and high brightness.
This model is composed of a TFT LCD module, a projected capacitive touch, HDMI
interface, audio line-out, automatic dimming with Ambient Light Sensor.
It is easy to use this TFT display with SBC, HMI, or as a computer display with any device
which has HDMI output.
The model supports a Rear mount and VESA mount, which is ideal for
embedded applications.
OF-101ZDEBCXD1F1-S
Data sheet
- Resolution
- 1280 (RGB) x 800 Resolution
- Active Area (W x H mm)
- 216.96 x 135.60
- Overall Dia. (W x H x D mm)
- 272.00 x 191.22 x 32.38
- Backlight Brightness
- 1250 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- HDMI
- Diagonal
- 10.1 inch
- LCD Type
- IPS
- Viewing Direction
- Free Direction
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- ILI2511
