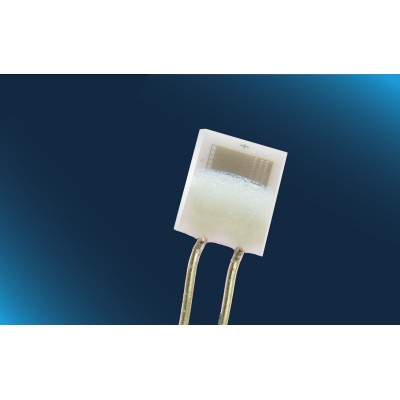

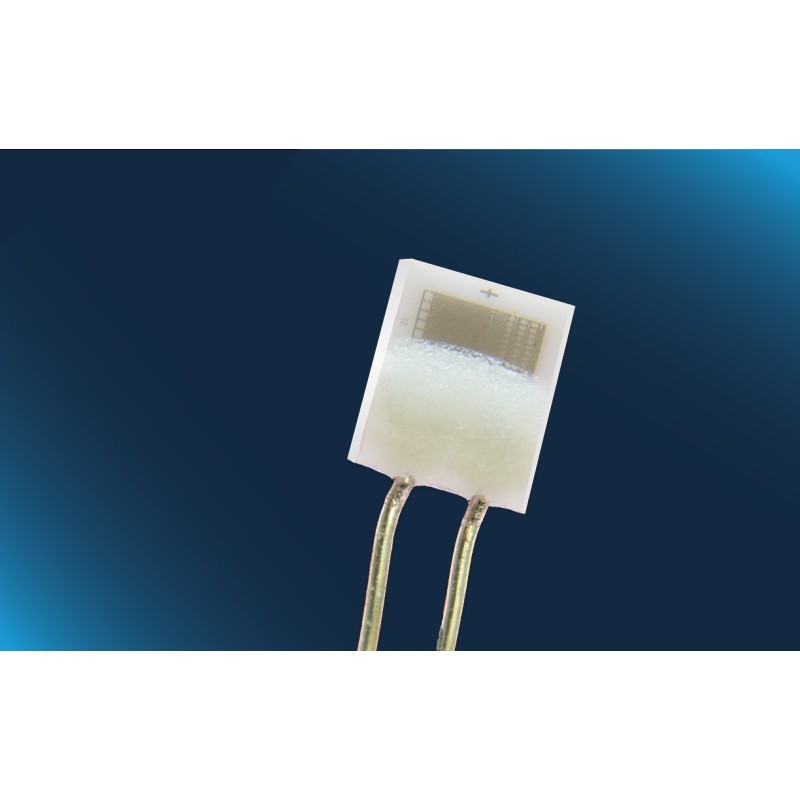

Standard Pt1000 (520) class F0.3, with optimized ESD design
Thin-film platinum, ESD-optimized, 1000 Ohm RTD component
Temperature sensor -200 °C to +600 °C, 5.0 x 2.0 x 1.3 mm, 10 mm wires
Product Name
P1K0.520.6W.A.010
Nominal resistance
1000 Ω at 0 °C
Operating temperature range
-200 °C to +600 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
5.0 x 2.0 x 1.3 mm
Tolerance/class
IEC 60751 F0.15 (IST AG reference class A)
Connection type
Pt/Ni-wire, Ø 0.2 mm
Wire length
10 mm
Special
ESD optimized design (IEC/EN 61000-4-2)
Packaging
Blister
replaces former 100285
