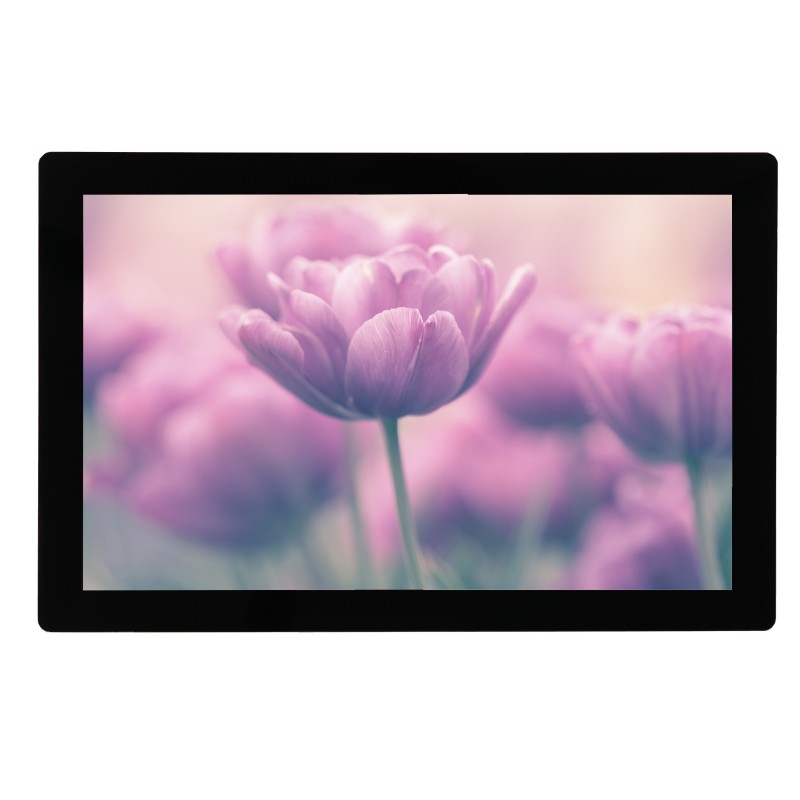

10.1" USB-C Display

Data sheet

Resolution

1024 (RGB) x 600 Resolution

Active Area (W x H mm)

222.70 x 125.28

Overall Dia. (W x H x D mm)

234.90 x 143.00 x 13.10

Backlight Brightness

800 cd/m2

Backlight Lifetime

50K Hours

Backlight Types

LED

Backlight Colours

White

Interface Mode

LVDS

Diagonal

7.00 inch

LCD Type

IPS

Viewing Direction

ALL

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Polarizer Modes

Transmissive
