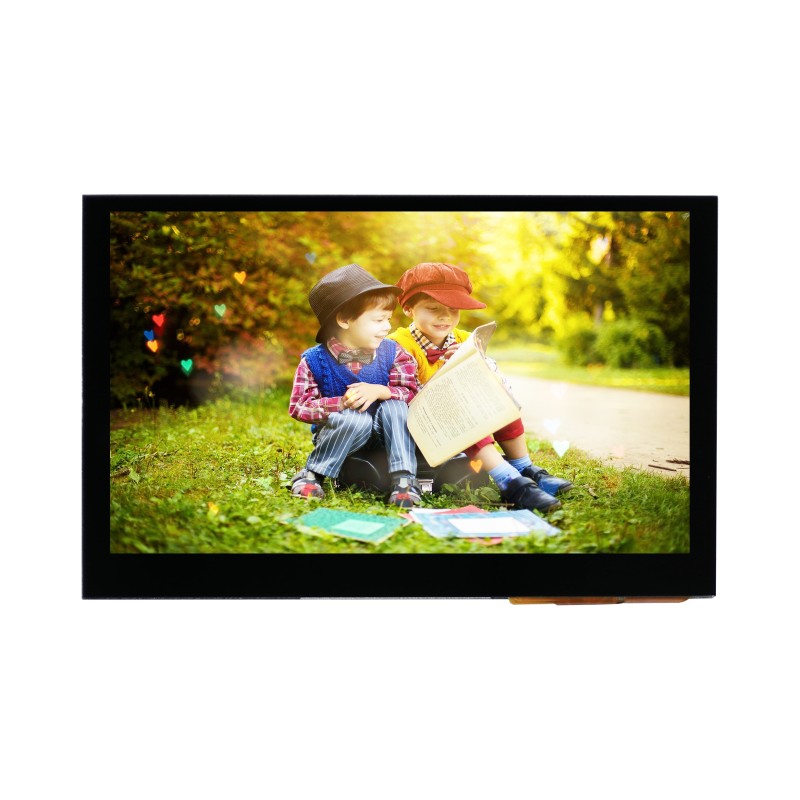

4.3" IPS Sunlight Readable HDMI Module,1000cd/m2 with CTP
4.3 inch IPS Sunlight Readable HDMI Module, 1000cd/m2 with Capacitive Touch ideal for Raspberry Pi applications.
HU-043WISBUAA1-B is a 4.3 (16:9) inch diagonally measured active display with
high resolution WXGA 800 x 480 display and high brightness. This model is composed
of a TFT LCD panel, backlight system, a projected capacitive touch panel and
HDMI interface . It is designed to make Raspberry Pi usage easy. You can simply use
this TFT display with your Raspberry Pi, or also you can use this as computer display
with any device which has HDMI output. This 4.3" TFT model comes in 800 x 480
resolution that would be great for embedded computing usage too.
HU-043WISBUAA1-B
Data sheet
- Resolution
- 800 (RGB) x 480 Resolution
- Active Area (W x H mm)
- 95.04 x 53.85
- Overall Dia. (W x H x D mm)
- 105.50 x 67.20 x 18.60
- Backlight Brightness
- 1000cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- HDMI
- Diagonal
- 4.30 inch
- LCD Type
- IPS
- Viewing Direction
- Free Direction
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
