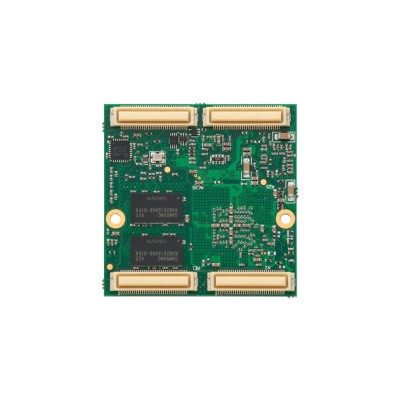

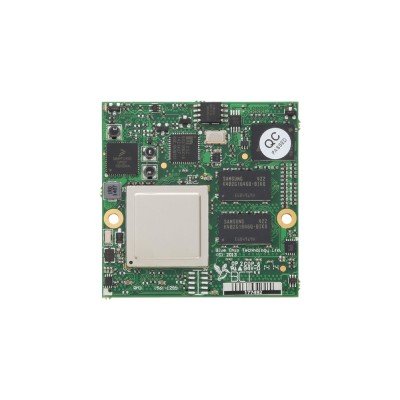

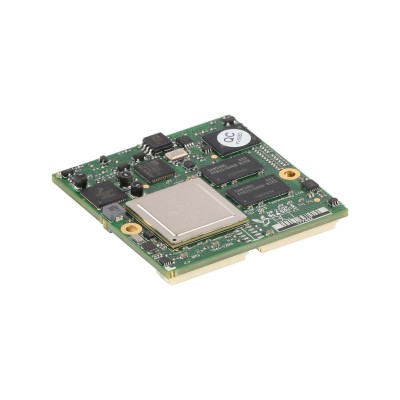

RM3 - ARM Quad Cortex A9 Board

The RM3 is the latest addition to Blue Chip Technology’s highly successful computer-on-module (COM) range of products in a tiny package, just 50 by 50mm. The RM3 processor is the latest Freescale iMX6 Cortex A9 with dual and quad-core processor options. The graphics engines on these versions of the iMX6 are class leading and able to drive two independent displays. A COM is an off-the-shelf building block with all of the functionality of a high performance single board computer – CPU, chipset, RAM, Flash, Ethernet, CAN, etc but without the usual constraints. Instead you choose the board size/profile, the inputs /outputs and the connectors that suits your product best and then fit one of our COMs to provide the level of performance required. Basing your new product on our COM means the most expensive, complex and highest risk elements of the design are already proven whilst your host board design is a simple task which can be completed quickly and effectively. We can either support you when you design your own host board or if you wish design it for you.

Freescale iMX6 ARM Cortex-A9 1GHz Dual Core Processor with TrustZone
Cortex A9 NEON MPE (Media Processing Engine) Co-Processor per Core
32KB Instruction Cache + 32KB Data Cache per core
1 MB unified I/D L2 cache, shared by two/four cores
1GHz Processor Speeds
512MB/1GB/2GB 64 bit DDR3 RAM
1GB SLC NAND Flash
Dual HD displays (DVI/HDMI & LCD) supported simultaneously and independently
Total raw pixel rate of all interfaces up to 450Mpixels/sec, 24 bpp
One video camera/capture port - concurrent operation with dual video channels
USB 2.0 ports
10/100/1000 Ethernet LAN
Power Management
Audio
General Purpose IO Lines
Small 50mm x 50mm module with high reliability connectors
