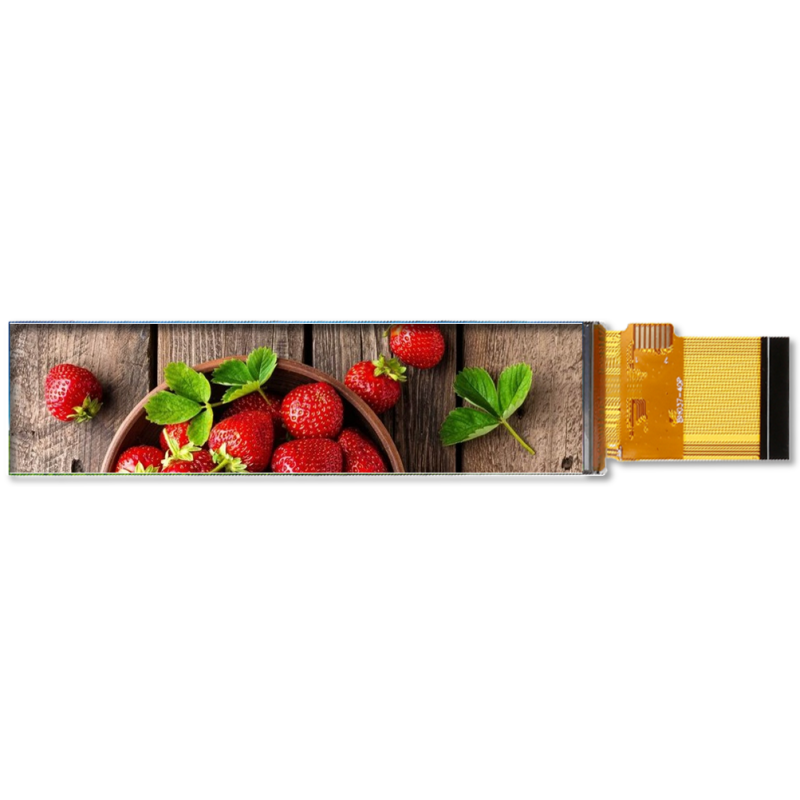

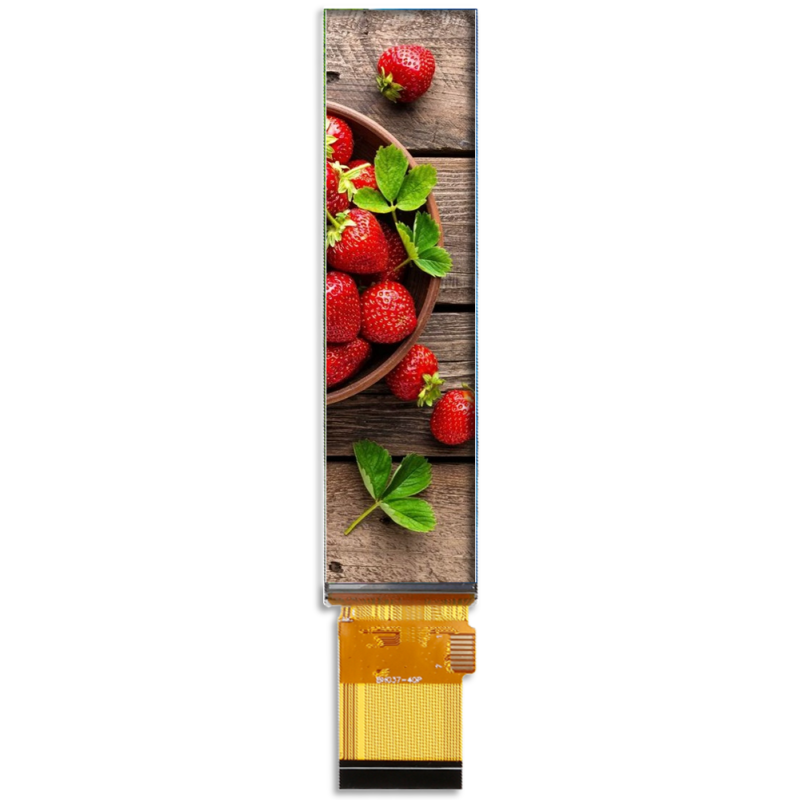

3.7" Bar Style TFT Display

Data sheet

Resolution

240(RGB) X 960

Active Area (W x H mm)

22.96 x 91.44

Overall Dia. (W x H x D mm)

25.30 x 98.89 x 2.10

Backlight Brightness

350 cd/m2

Backlight Lifetime

25K hrs.

Backlight Types

LED

Backlight Colours

White

Interface Mode

RGB

Viewing Direction

ALL

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C
