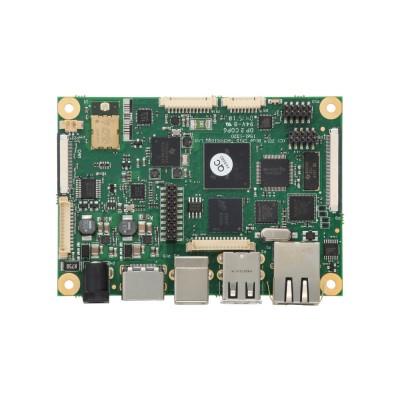

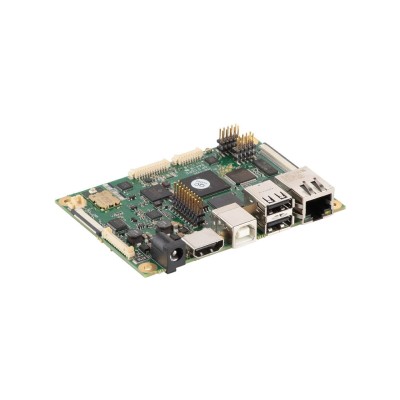

RE2 - ARM Cortex A8 OMAP Board

The Blue Chip Technology RE2 is a high-performance, ultra low power embedded single board computer with onboard DSP, high resolution video playback with strong communications interfaces. Despite being powered by a 1GHz ARM Cortex A8 core with 800MHz C64x DSP, the power dissipation is typically only 2 to 3 watts.

The RE2 video performance is particularly impressive as it is able to drive a variety of displays including RGB (TTL/CMOS), LVDS and DVI/HDMI.

Standard and extended temperature (40°C to +85°C) versions are available.

Single ARM Cortex A8 processor 800MHz or 1GHz
NEON SIMD Coprocessor
TMS320C64x+ Digital Signal Processor (3730 only- 660MHz or 800MHz)
POWERVR SGX Graphics Accelerator (3730 only)
Multiple GPIO (1.8V volts)
Multiple MCBSP (UARTs)
SPI, USB, HDQ, I2C, SD/MMC/SDIO
Camera Image Signal Processing
CCD and CMOS Imager Interface
System Direct Memory Access (SDMA) controller
LPDDR and asynchronous interface
Memory subsystem
256Mbytes mobile LPDDR memory, 400 MT/s
On-board 512MB NAND Flash memory for code storage
Peripherals
Ethernet,SMSC LAN9221, 10/100Mbit/sec
Audio Codec
USB Device + USB PHY + USB Host interface.

Small 50mm x 50mm module with high reliability connectors
