EDT 5.7 Inch Display, 425 cd/m²

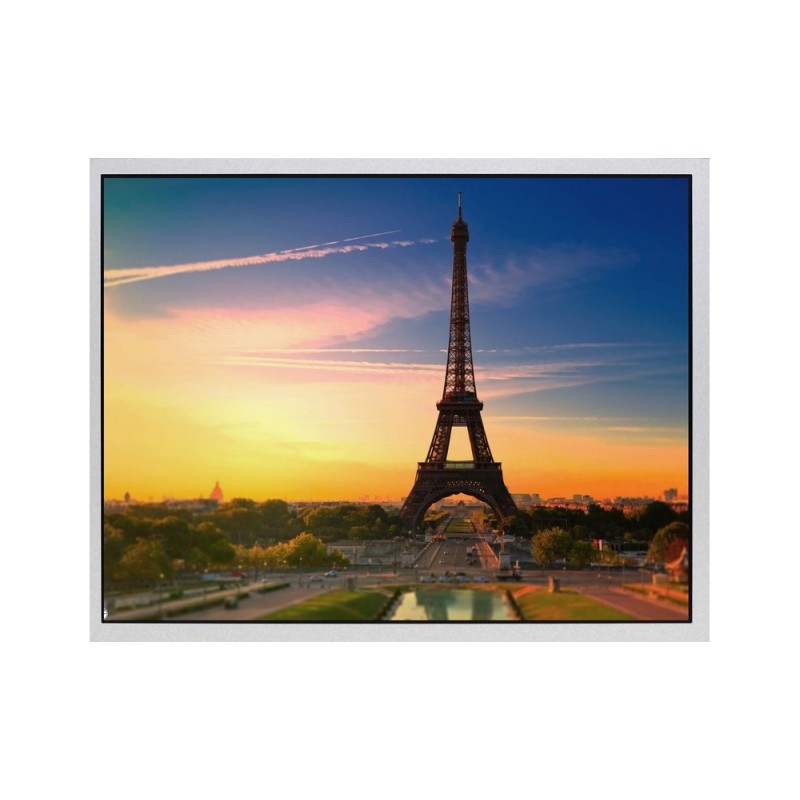

EDT 5.7-inch Display with 425 cd/m² Brightness
A compact EDT display designed for industrial, embedded and commercial applications. Its 5.7-inch screen and 425 cd/m² brightness provide clear, dependable image visibility. Please confirm the part number, dimensions, interface and electrical requirements before ordering.
- Manufacturer: EDT (Emerging Display Technologies)
- Display size: 5.7 inches
- Brightness: 425 cd/m²
- Product type: Display module
- Condition: New
- Applications: Industrial equipment, embedded systems and control interfaces
ETM057011EDH6
Data sheet
- Resolution
- 320 (RGB) x 240 Resolution
- Active Area (W x H mm)
- 115.20 x 86.40 mm
- Overall Dia. (W x H x D mm)
- 124.70 x 100.00 x 11.70 mm
- Backlight Brightness
- 425 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB 24 Bit
- Diagonal
- 5.70 inch
- LCD Type
- TFT
- Viewing Direction
- 6 O'clock
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- HIMAX HX8218 / HIMAX HX8615
