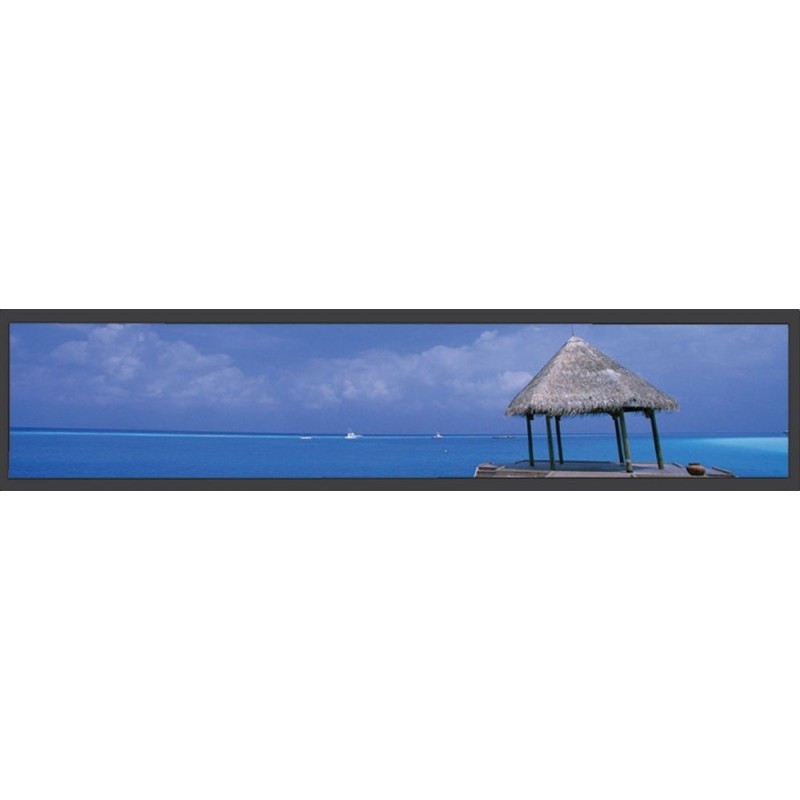

Santek 12.3" Bar Style LCD Display
The Santek 12.3-inch bar-style TFT display combines an ultra-wide format with 700cd/m² high brightness for clear, vibrant content in high ambient-light conditions. Its panoramic design is well suited to digital signage, control panels, transport information systems, kiosks and other space-conscious display applications.
- Manufacturer: Santek
- Display size: 12.3-inch diagonal
- Display type: TFT LCD
- Format: Ultra-wide bar style
- Brightness: 700cd/m²
- Applications: Signage, instrumentation, information displays and embedded systems
Please contact LCDTek for the full datasheet, interface details and integration support.
ST1230P1W-RSMLW-C
Data sheet
- Resolution
- 1920 (RGB) x 720 Resolution
- Active Area (W x H mm)
- 292.03 x 109.51
- Overall Dia. (W x H x D mm)
- 313.80 x 132.20 x 13.30
- Backlight Brightness
- 700 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- LVDS
- Diagonal
- 12.30 inch
- LCD Type
- IPS
- Viewing Direction
- 85/85/85/85
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
