EDT 10.1 inch IPS Sunlight Readable Display,850 cd/m2 with CTP

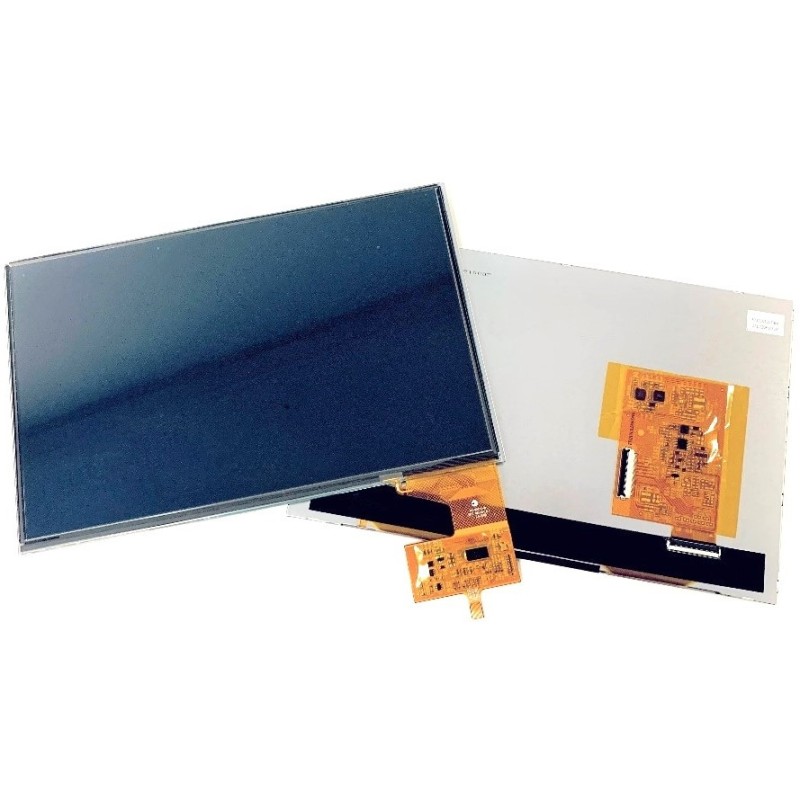

EDT 10.1-inch IPS Sunlight Readable TFT Display with Capacitive Touch
This high-brightness 10.1-inch display from EDT combines IPS technology, an impressive 850 cd/m² brightness and an integrated capacitive touch panel (CTP). It delivers clear images, wide viewing angles and responsive touch operation, making it ideal for industrial HMI, outdoor terminals, kiosks and other high-ambient-light applications.
- Manufacturer: EDT (Emerging Display Technologies)
- Display size: 10.1 inch
- Display technology: IPS TFT LCD
- Brightness: 850 cd/m²
- Visibility: Sunlight readable / high brightness
- Touch panel: Integrated capacitive touch panel (CTP)
- Key benefits: Wide viewing angles, vivid colour reproduction and responsive touch control
- Typical applications: Industrial controls, HMIs, kiosks, outdoor equipment, marine systems and EV charging stations
Please check the product datasheet for full mechanical, electrical, interface and touch-controller specifications before integration.
ETML101013MDRA
Data sheet
- Resolution
- 1280 (RGB) x 800 Resolution
- Active Area (W x H mm)
- 216.96 x 135.60
- Overall Dia. (W x H x D mm)
- 229.46 x 149.10 x 8.60
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- LVDS
- Diagonal
- 10.1 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- EK 79202B
