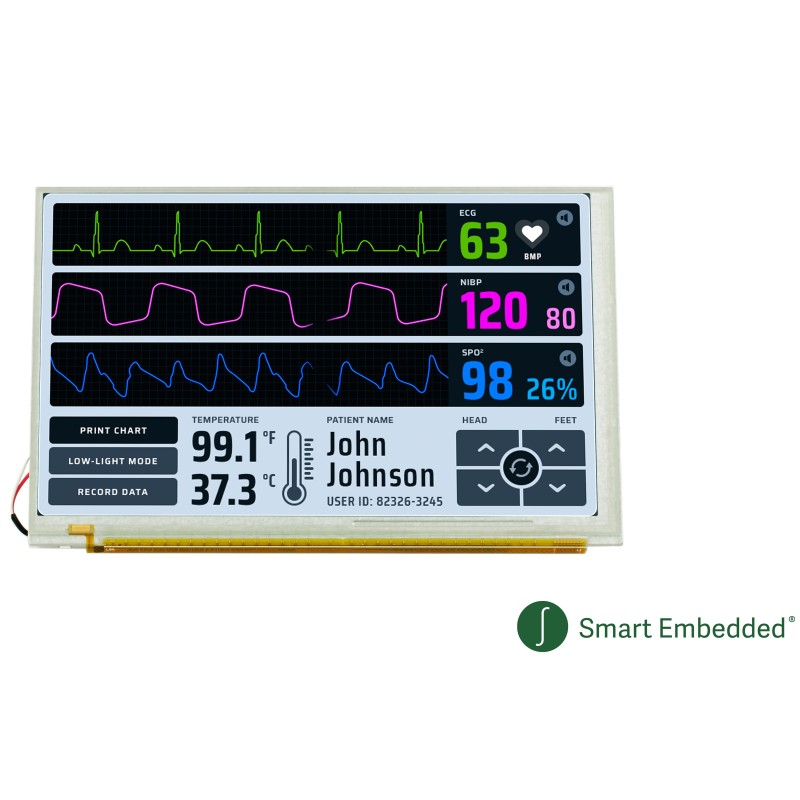

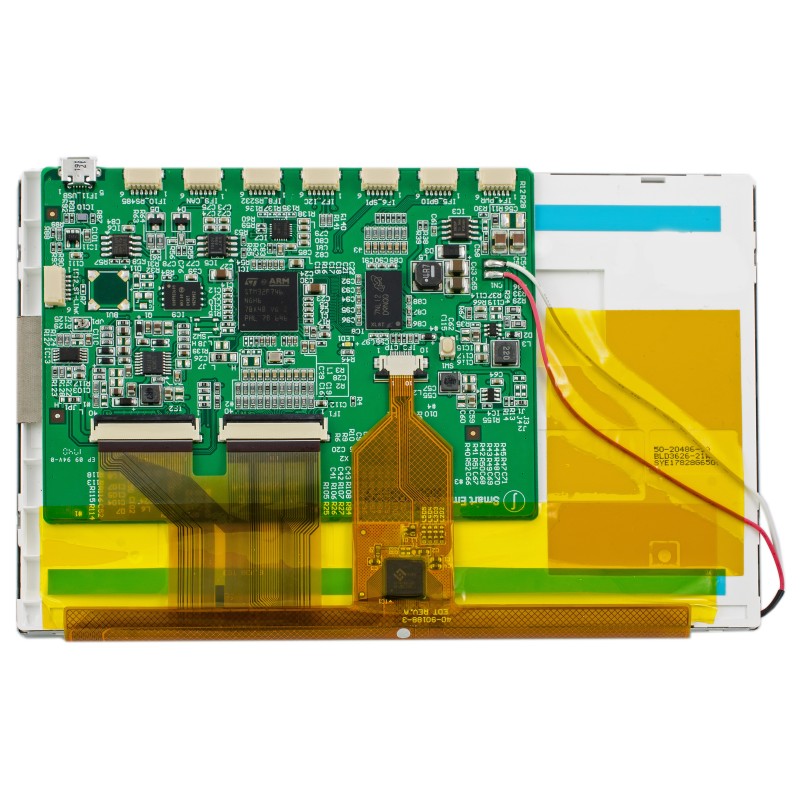

EDT EVK101009AB. 10.1" Smart Embedded IPS Evaluation Kit, 850nits with CTP
EVK101009AB is a 10.1-inch smart embedded display evaluation kit from EDT, developed for rapid prototyping and proof-of-concept applications. Its high-brightness 850 nits IPS display provides clear visuals and wide viewing angles, while the integrated capacitive touch panel (CTP) enables intuitive touch-controlled interfaces.
Ideal for evaluating smart HMI designs, industrial controls, kiosks, instrumentation and other embedded display applications.
Basic Specifications
- Manufacturer: EDT (Emerging Display Technologies)
- Part number: EVK101009AB
- Product type: Smart embedded display evaluation kit
- Display size: 10.1 inches
- Display technology: IPS TFT LCD
- Brightness: 850 cd/m² (nits)
- Touch interface: Capacitive touch panel (CTP)
- Primary use: Development, evaluation and rapid prototyping
EVK101009AB
Data sheet
- Resolution
- 1024 (RGB) x 600 Resolution
- Active Area (W x H mm)
- 222.72 x 125.28 mm
- Overall Dia. (W x H x D mm)
- 253.72 X 156.28 X 13.75 MM
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RJ45 (10/100), RS485, CAN, RS232,I2C, SPI, GP10,USB
- Diagonal
- 10.1 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Character Size (mm)
- 222.72 x 125.28
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- ST5651CB / ST5021
