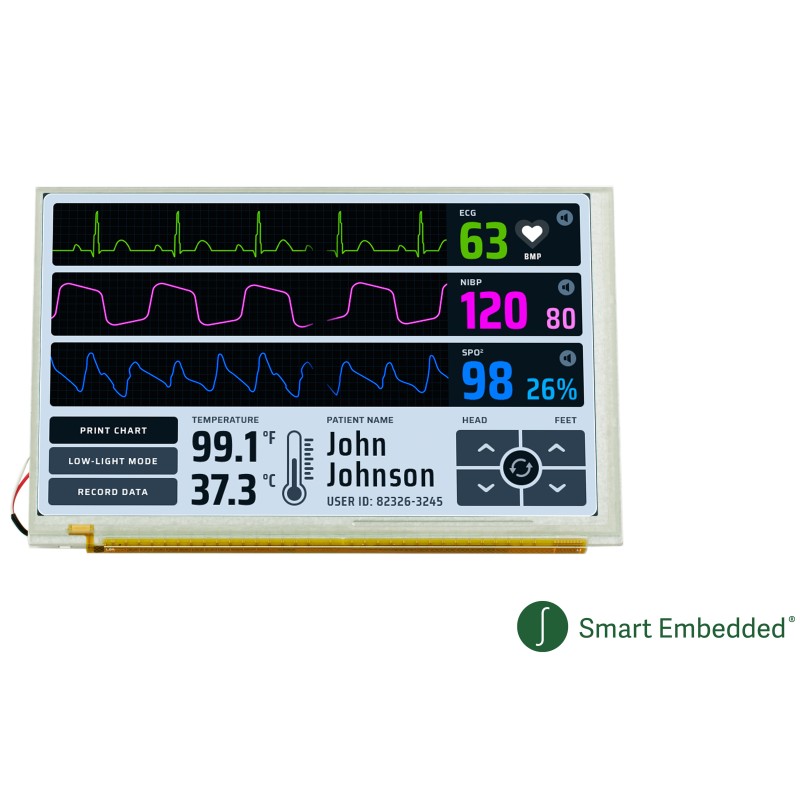

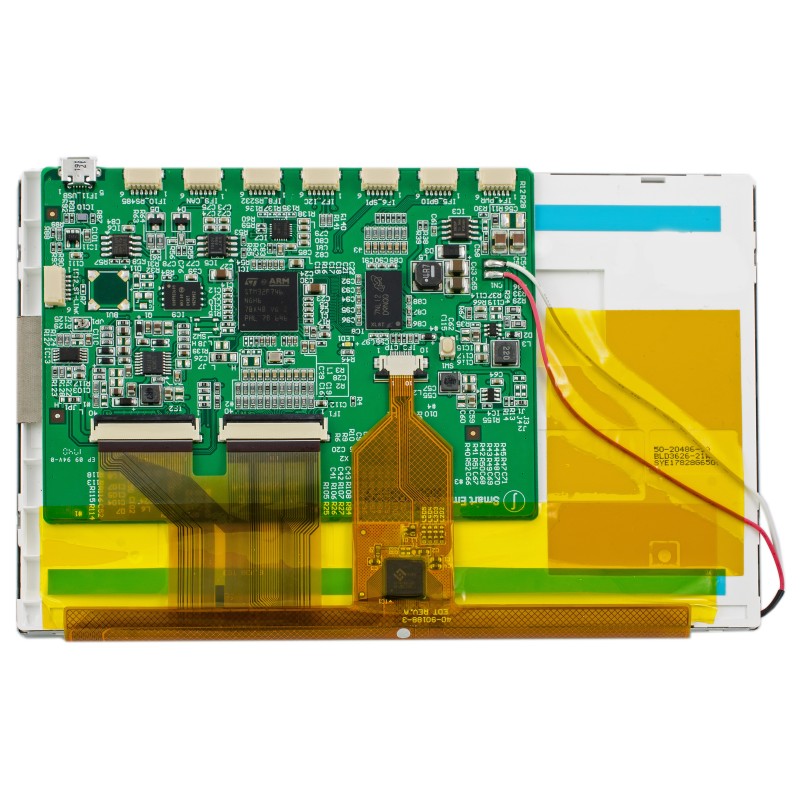

EDT EVK070016B-POE. 7" Smart Embedded TFT Evaluation Kit, 850nits with CTP
EDT EVK070016B-POE is a 7-inch Smart Embedded TFT evaluation kit designed for rapid HMI development, software evaluation and proof-of-concept projects. Its high-brightness 850 nits TFT display provides excellent visibility, while the integrated capacitive touch panel delivers responsive, intuitive operation.
Power over Ethernet support simplifies installation by carrying power and network connectivity through a single cable, making this kit ideal for industrial controls, building automation, medical equipment and connected IoT applications.
Basic Specifications
- Manufacturer: EDT
- Part number: EVK070016B-POE
- Product type: Smart Embedded TFT evaluation kit
- Display size: 7.0-inch
- Display technology: TFT LCD
- Brightness: 850 nits
- Touch interface: CTP projected capacitive touch panel
- Connectivity: Power over Ethernet (PoE)
- Primary use: Evaluation, prototyping and embedded HMI development
EVK070016B-POE
Data sheet
- Resolution
- 1024 (RGB) x 600 Resolution
- Active Area (W x H mm)
- 154.21 x 85.92
- Overall Dia. (W x H x D mm)
- 194.40 x 127.44 x 13.70
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- SPI, I2C, RS232, RS485, CAN BUS, GPIO
- Diagonal
- 7.00 inch
- LCD Type
- TN
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
