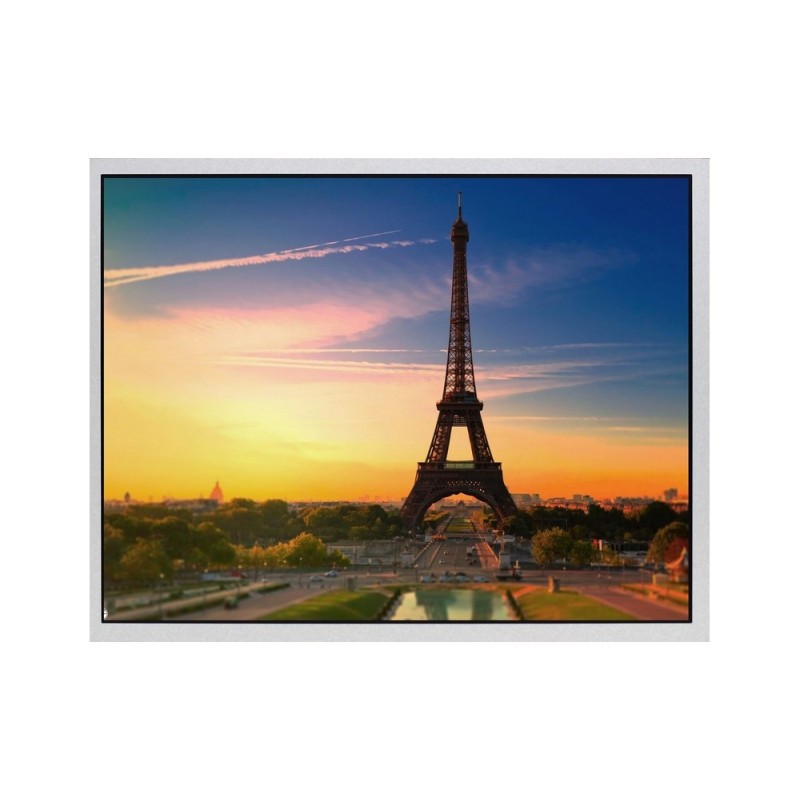

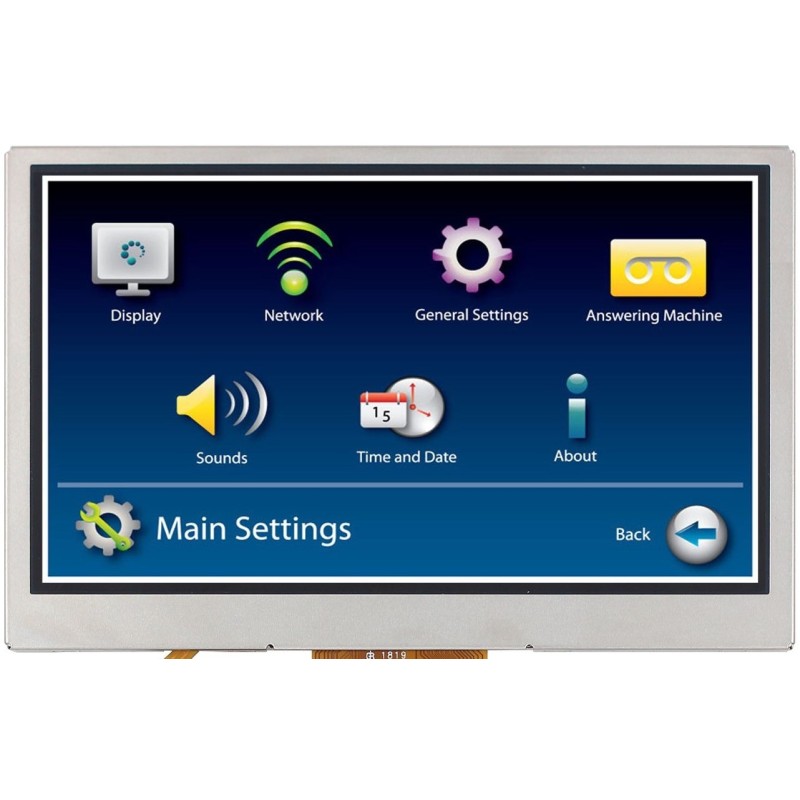

5.7" TFT Display, 450 cd/m2

Data sheet

Resolution

320 (RGB) x 240 Resolution

Active Area (W x H mm)

115.20 x 86.40 mm

Overall Dia. (W x H x D mm)

124.70 x 100.00 x 7.50 mm

Backlight Brightness

450 cd/m2

Backlight Lifetime

40K HOURS

Backlight Types

LED

Backlight Colours

White

Interface Mode

RGB 24 Bit

Diagonal

5.70 inch

LCD Type

TFT

Viewing Direction

6 O'clock

Operating Temperature

-10 TO 60 DEG C

Storage Temperature

-20 TO 70 DEG C

Polarizer Modes

Transmissive

Display Controller/Driver IC

HIMAX HX8218 / HIMAX HX8615
