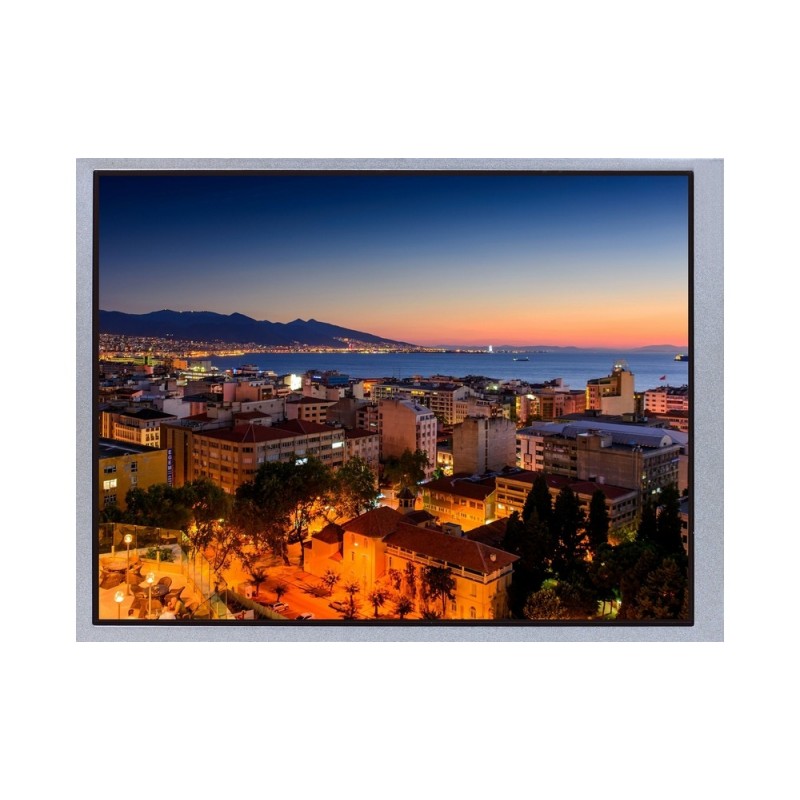

10.4" Extended Operating Temperature TFT Display, 350cd/m2, with LVDS Interface

Data sheet

Resolution

800 (RGB) x 600 Resolution

Active Area (W x H mm)

211.20 x 158.40

Overall Dia. (W x H x D mm)

243.00 x 184.00 x 5.00

Backlight Brightness

350 cd/m2

Backlight Lifetime

30K Hours

Backlight Types

LED

Backlight Colours

White

Interface Mode

LVDS

Diagonal

10.40 inch

LCD Type

a-Si

Viewing Direction

70/70/80/80

Operating Temperature

-30 to +80 deg. C

Storage Temperature

-30 to +85 deg. C

Polarizer Modes

Transmissive
